Showers
Tiled showers and bathtub surrounds add luxury and value to your home. Protect your investment with proper water management measures.
- Category: Showers
Commercial steam showers create some of the most demanding environments for superior waterproofing measures due to their extreme conditions.
- Category: Showers
Residential steam showers bring luxury to any home. For this luxury to last, the tile installation must be well-protected against moisture.
- Category: Showers
The Schluter®-KERDI-LINE linear drain allows the shower base to be sloped on a single plane, increasing design options for tile.
- Category: Showers
Unlike fiberglass shower stall units, tiled showers have a smart, sophisticated look that makes a statement even in the most basic bathroom.
- Category: Showers
Tiles are easy to clean and available in an array of colors and design—perfect for any bathtub surround.
The timeless beauty of ceramic and stone tiles enhances the aesthetics of any bathroom. Tiled showers, steam showers, and bathtub surrounds are luxurious and elegant and add to the value of your home.
Tiles are not inherently waterproof, however, and must be installed in conjunction with a waterproofing system that effectively manages moisture to protect moisture-sensitive building materials and control mold growth.
Assemblies achieved using the Schluter®-Shower System reduce total installation time and eliminate the risk of failures due to water and vapor penetration, thus preventing efflorescence and mold growth.
Many components come into play when building a watertight and waterproof tiled shower. Schluter® offers you various options that will help you save on installation time, while accommodating your taste and needs.
Waterproofing options

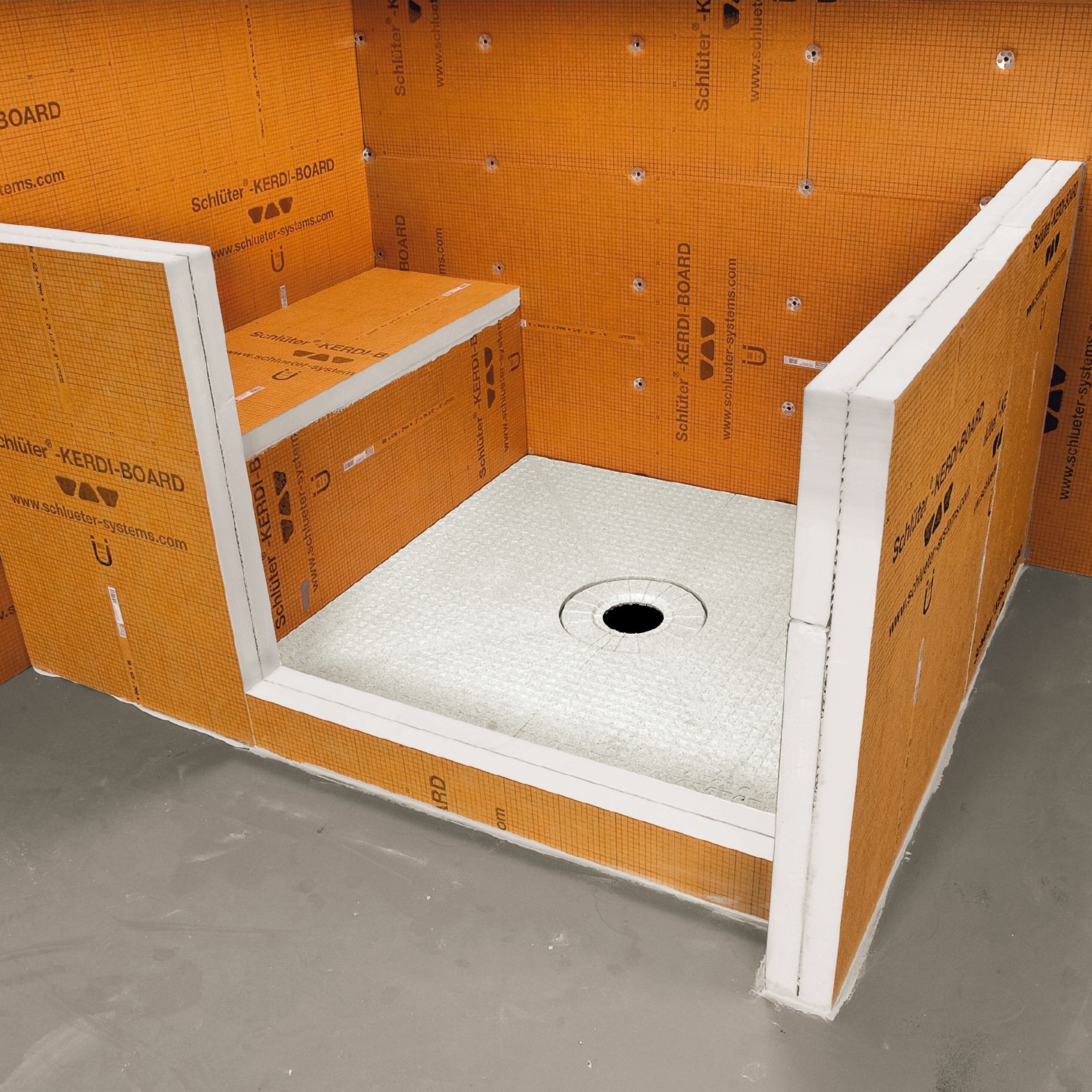

Schluter®-KERDI waterproofing membrane over solid backing
- Thickness: 8 mil (0.2 mm)
- Pliable, easy to install, and guarantees uniform thickness for reliable performance
- Suitable for use in showers, bathtub surrounds, and intermittent-use steam showers
Schluter®-KERDI-BOARD waterproof building panel
- Lightweight, easy to cut and install XPS foam panel
- Combines substrate installation and waterproofing
- Suitable for use in showers, bathtub surrounds, and intermittent-use steam showers
Drain options
- Integrated bonding flange ensures waterproof connection at top of assembly
- Can be installed with prefabricated foam shower trays or mortar bases
- Simple connection to standard drain outlets for new construction or renovation
- Grate assemblies accommodate a wide range of tile thicknesses

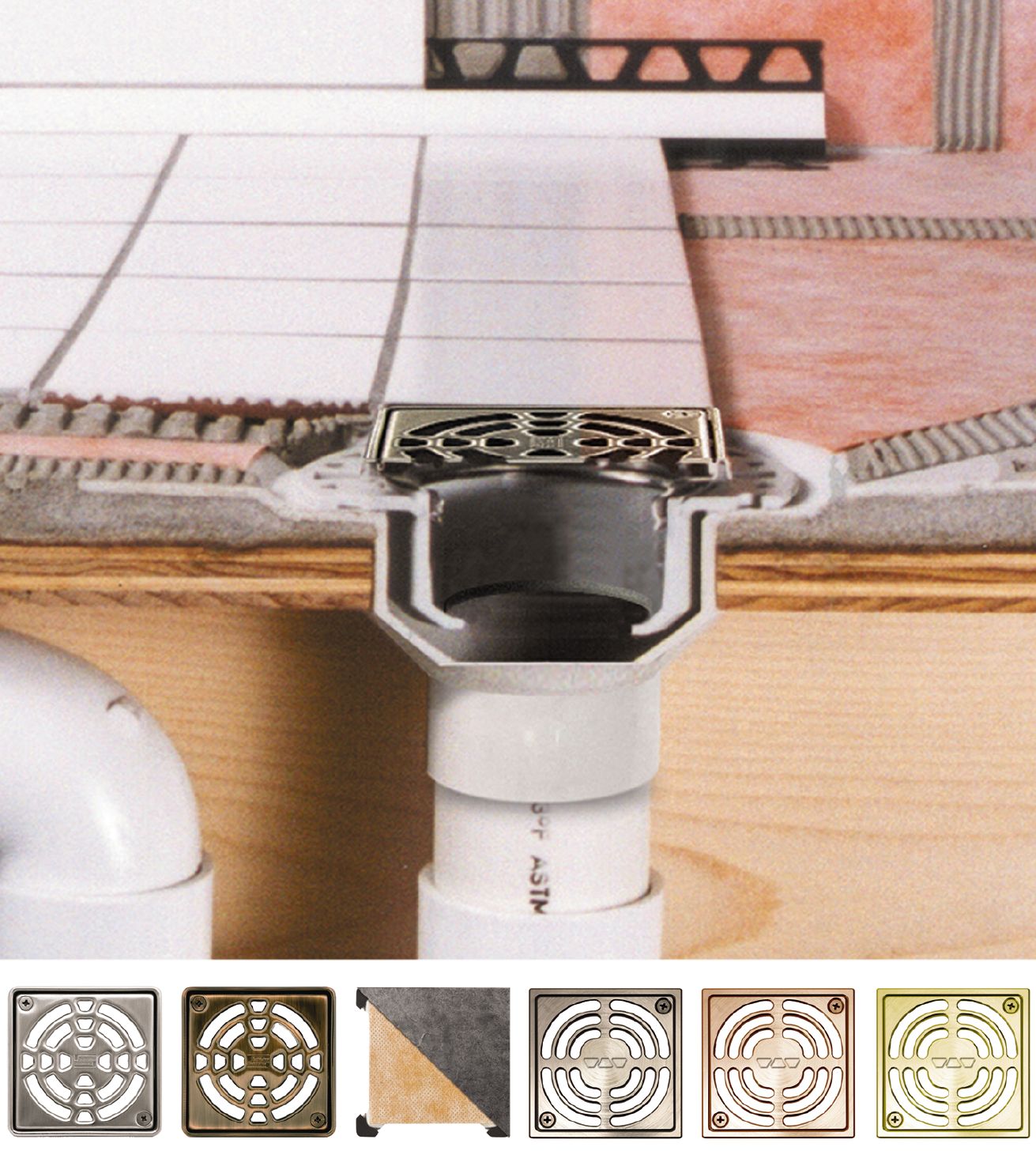

Schluter®-KERDI-DRAIN
- Fully adjustable square grate assemblies minimize and simplify tile cuts
- Available with 2" or 3" (50 mm or 75 mm) outlets
- Adaptor kits allow for conversion of existing clamping ring drain to KERDI-DRAIN

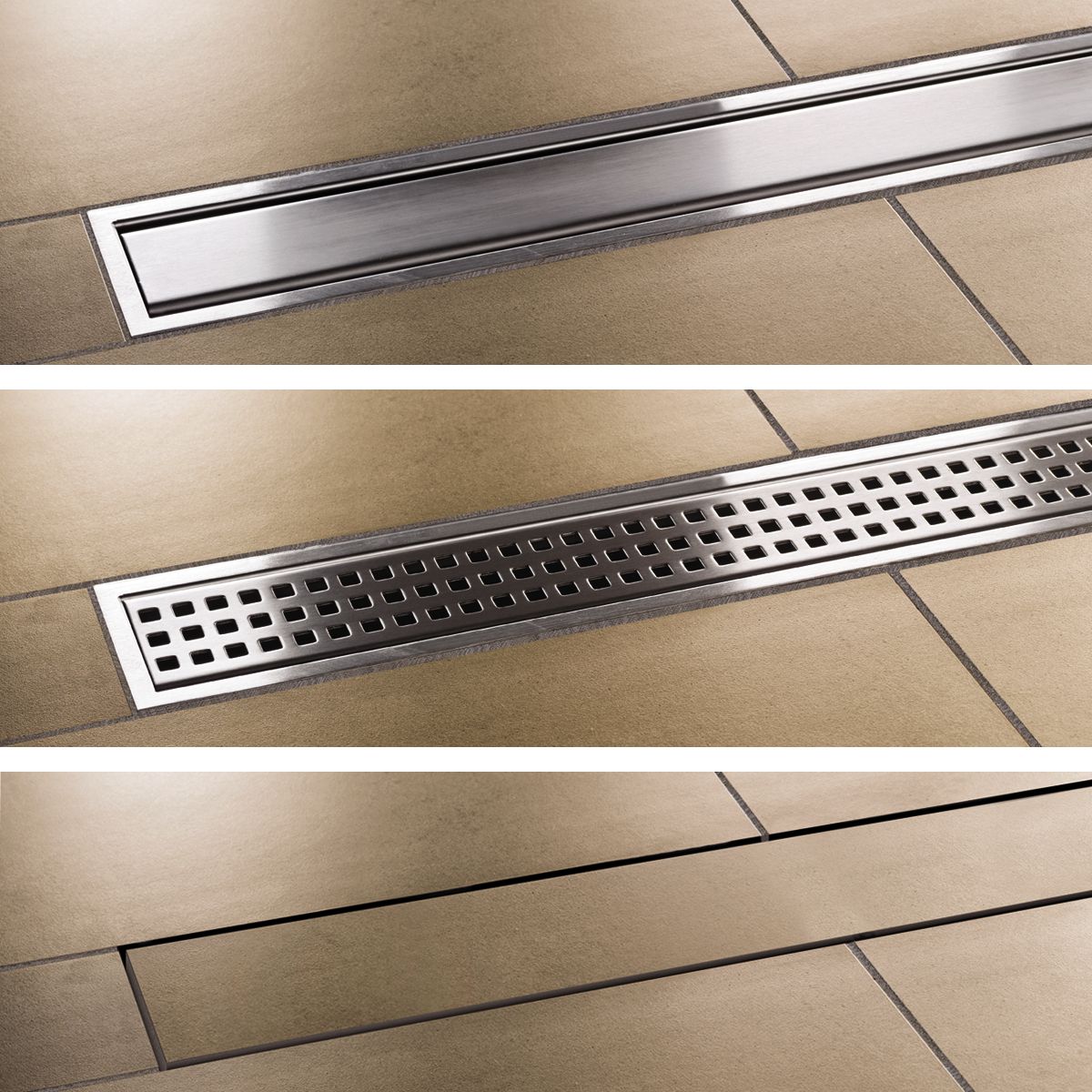

Schluter®-KERDI-LINE
- Accommodates single-plane slope and large-format tile installation
- Can be installed adjacent to walls or at intermediate locations
Shower base options
Schluter prefabricated shower trays
- Lightweight, easy to install
- Reduces installation time
- Available in a variety of formats, including trays designed for both point and linear drains
- Can be cut to size or extended using dry pack mortar

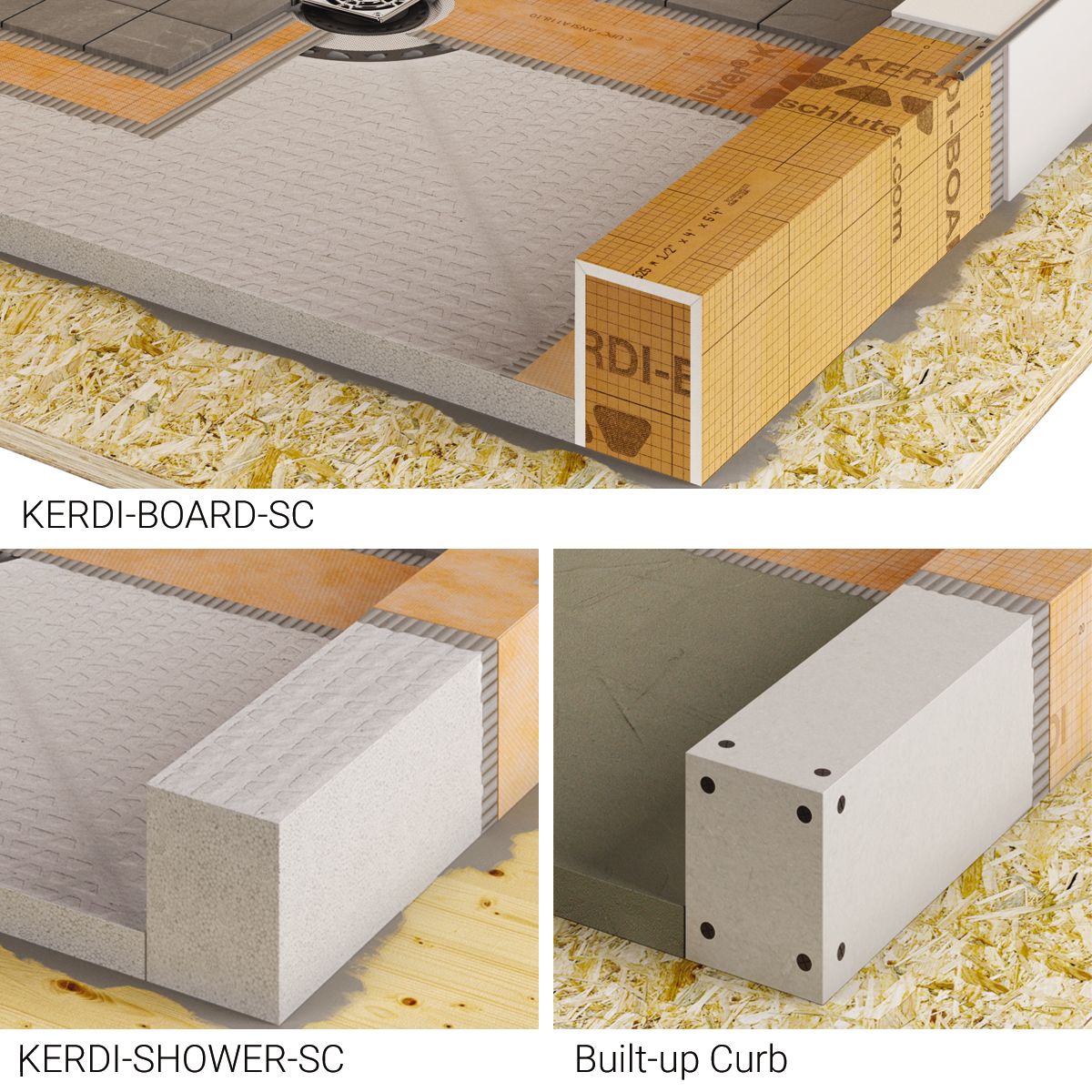

Curb options
Schluter®-KERDI-BOARD-SC
- Lightweight, stable, and load bearing
- Can be cut to length
- Quick and easy to install, waterproof, and ready to tile
Schluter®-KERDI-SHOWER-SC curb
- Preformed, lightweight and easy to install
- Can be cut to length
- Can be used with Schluter prefabricated shower trays or mortar base applications
Built-up curb
- Customizable to fit any application
- Can be built as desired (e.g., length, width, height)

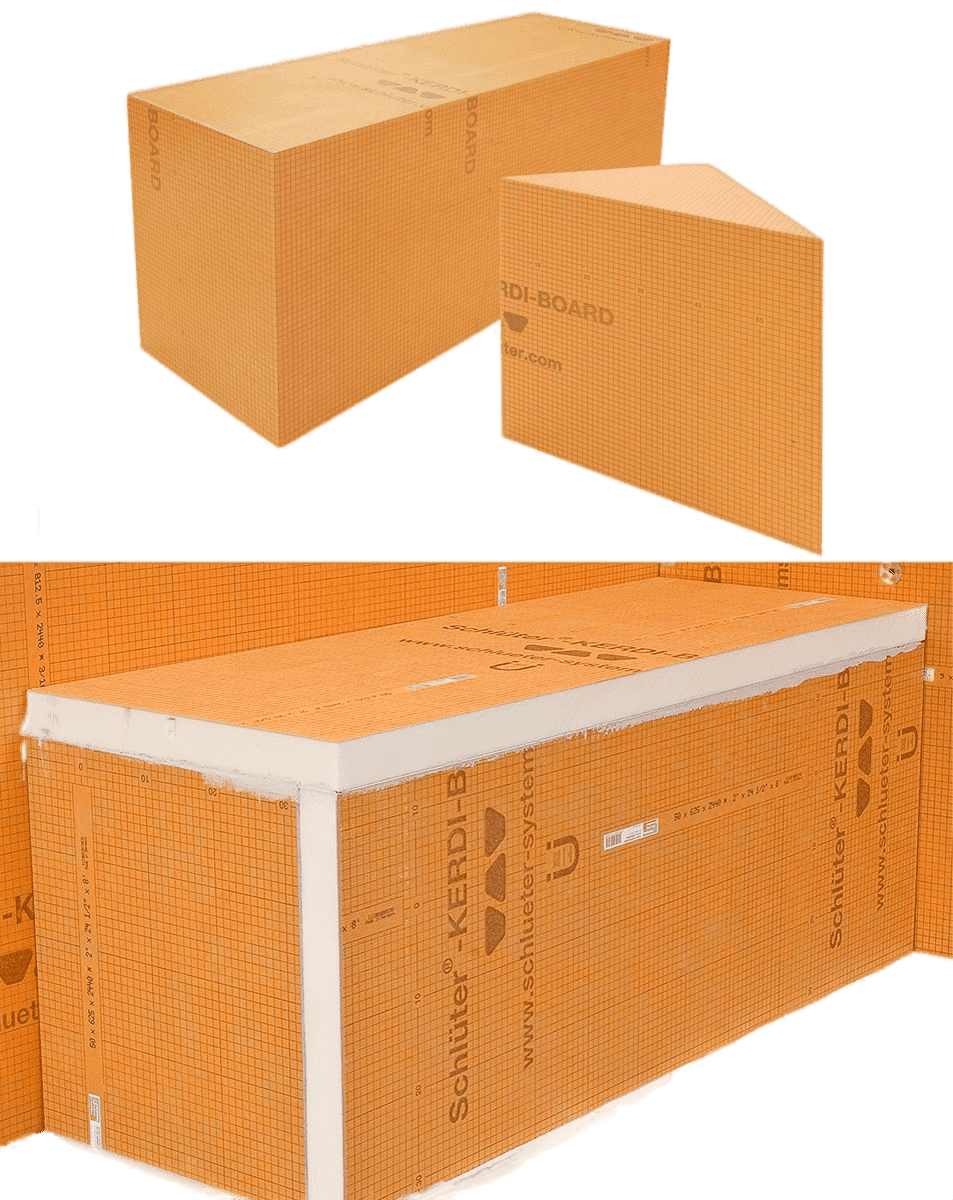

Bench options
Schluter®-KERDI-SHOWER-SB bench
- Preformed, lightweight, easy to install
- Available in triangular and rectangular shapes in various sizes
- Combines substrate installation and waterproofing
Schluter®-KERDI-BOARD bench
- Customizable to fit any application, can be built as desired
- Combines substrate installation and waterproofing

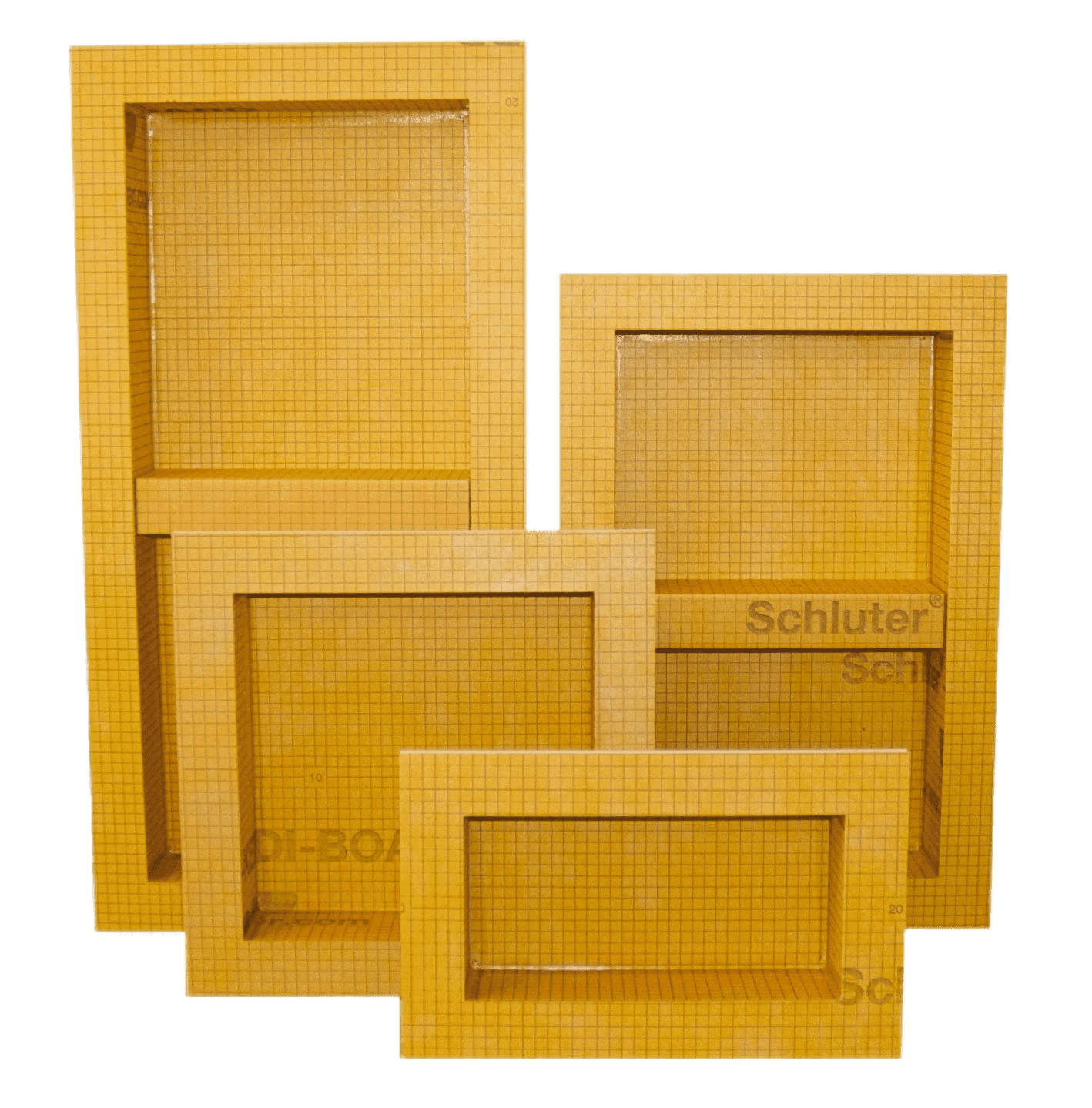

Shower niche
Schluter®-KERDI-BOARD-SN shower niche
- Prefabricated shower niche made of KERDI-BOARD
- Preformed, lightweight, easy to install
- Various sizes available
