The Schluter®-KERDI-LINE linear drain allows the shower base to be sloped on a single plane, increasing design options for tile.
Linear drains have become sought-after drainage choices for residential and commercial showers alike. With their high-design appeal, linear drains make a statement in the shower, but they also have a functional side. With point drains, shower bases must be sloped from all directions to the drain, therefore limiting tile selection to mosaics or other relatively small-format tiles.
With KERDI-LINE, the shower base can be sloped on a single plane, enabling the use of attractive large format tiles. Large-format tiles on the bathroom floor can be continued onto the shower base, creating a seamless transition.
Waterproofing in the Shower
Waterproofing remains the cornerstone of your shower’s durability. Water and vapor penetrate through the grout joints (even sealed grout joints), mortar, and backing materials in shower walls and floors, allowing moisture to collect in the wall cavity or floor structure, which is the primary cause of mold growth. KERDI-LINE and the Schluter®-Shower System offer an integrated moisture management solution that eliminates leaks and mold growth, and ensures the lasting beauty of your tiled shower.
Schluter®-Systems offers two distinct ways of waterproofing your shower: KERDI-BOARD and KERDI. Both of these shower assemblies offer the opportunity to integrate the KERDI-LINE linear drain. Let’s examine both options:
KERDI-BOARD

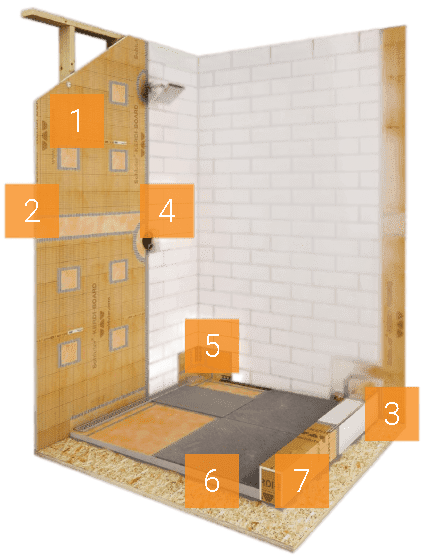

In this linear drain shower, we are using KERDI-BOARD building panels fastened directly to the studs , instead of gypsum or cement board, tocreate a bonded waterproof assembly. KERDI-BOARD is a lightweight XPS foam panel that is inherently waterproof. Unlike gypsum or cement boards which require additional prep work for waterproofing; KERDI-BOARD combines substrate installation and waterproofing in one simple step.
KERDI-BOARD is the ideal substrate for your tile shower!
KERDI-BAND
KERDI-BAND is a waterproofing strip used to seal all KERDI-BOARD butt joints, screw penetrations, and the connection between the KERDI-BOARD panels on the walls with the KERDI membrane laminated to the shower tray. KERDI-BAND is only 4 one-thousands of an inch (4 mil) -thick, half the thickness of KERDI to limit buildup and ensure a smooth surface for tile installation.
Waterproofing corners
KERDI-KERECK-F are preformed, seamless corners made of KERDI for waterproofing inside and outside corners. Corners tend to be challenging areas to waterproof, so these corners greatly simplify installation.
Pipe and mixing valve seals

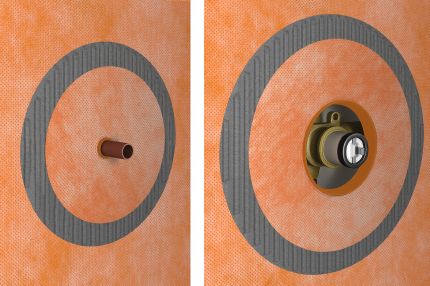

KERDI-SEAL-PS & -MV are used to seal pipe protrusions (PS) and protect solid backing panels at the mixing valve (-MV). They are made of KERDI waterproofing membrane and feature overmolded rubber gaskets to ensure a fully watertight seal.
KERDI-LINE Linear Drain

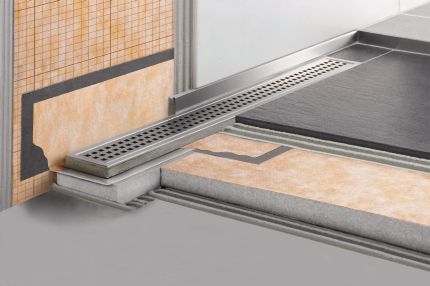

KERDI-LINE is an elegant, low profile linear floor drain specifically designed for bonded waterproofing assemblies. Install KERDI-LINE adjacent to the wall, or at intermediate locations of your shower floor—and then choose the drain grate that best matches your décor and desired finished look.
With lengths from 20" to 72" (50 cm to 180 cm) in 4" (10 cm) increments, KERDI-LINE can fit virtually any shower design.
Channel body
The KERDI-LINE channel body is made of formed stainless steel and features a bonding flange laminated with a collar made of KERDI waterproofing membrane. It ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls. It features a standard 2" (50 mm) no-hub outlet that is simple to connect to the waste line, and is offered in center and offset versions, providing flexibility when obstacles (e.g., floor joists) are encountered during installation.
Drain Grates
Drain grates are available in three elegant designs: brushed stainless steel frame with closed or perforated grates for a striking modern look, or frameless tileable covering support to seamlessly blend in with the surrounding tiles. KERDI-LINE-STYLE grates feature designs that fit virtually into an invisible frame. The grate assembly can be adjusted to a wide range of tile thicknesses, while the covering support is placed flush with the channel body and can therefore accommodate any thickness covering.
KERDI-SHOWER-LT/-LTS
The KERDI-SHOWER-LT/-LTS shower trays are made of lightweight, expanded polystyrene with integrated waterproofing via the KERDI membrane laminated on the surface, and a perfect slope so water is funneled directly to the drainage. The tray is simply bonded to any even and level substrate, and it’s ready to tile. As such, it eliminates the time and labor involved in building a sloped mortar bed. However, in cases where the configuration of the shower does not allow for the use of the tray, KERDI-LINE can also be used in conjunction with a mortar base.
There are two drain placement options available for the shower tray: center or wall-adjacent, as seen in this image. The KERDI-SHOWER-LT/-LTS shower trays are available in 39” x 39” (100 cm x 100 cm), 48” x 48” (122 cm x 122 cm), 55” x 55” (140 cm x 140 cm), 36” x 72” (91 cm x 183 cm), and 38” x 76” (97 cm x 193 cm).
Prefabricated Shower Curb

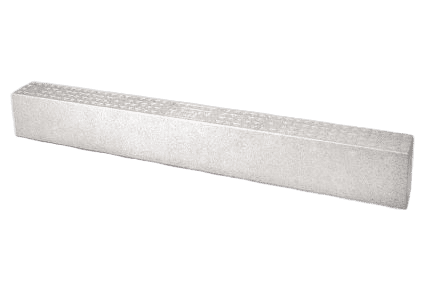

In this application we see the KERDI-SHOWER-SC shower curb, specifically designed to integrate with the shower system. The curb is available in two different materials: polystyrene (above) and KERDI-BOARD. Other options that can be added include prefabricated shower benches, niches, and ramps.

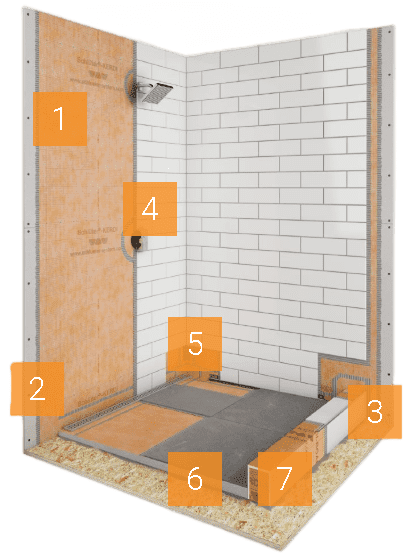

KERDI Shower with KERDI-LINE Linear Drain
KERDI Waterproofing Membrane
Waterproofing is the foundation of successful tiled bathrooms. Moisture-sensitive construction materials, such as wood framing, plywood, and OSB must be protected in wet areas in order for a shower installation to remain mold-free.

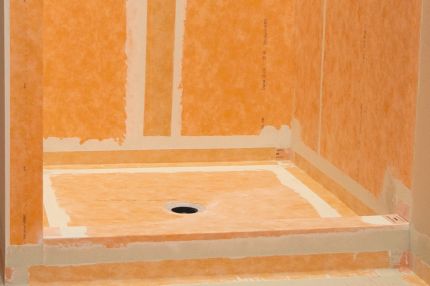

In this shower application, KERDI has been used to form the watertight assembly, covering both the gypsum board on the walls, and the shower curb. KERDI is a pliable, sheet-applied polyethylene waterproofing membrane and vapor retarder, designed to prevent moisture from penetrating the solid backing and preserve the integrity of tile. Since it is made of inorganic materials, KERDI will not promote mold growth within the system.
KERDI-BAND
KERDI-BAND is a waterproofing strip used to seal all KERDI-BOARD butt joints, screw penetrations, and the connection between the KERDI-BOARD panels on the walls with the KERDI membrane laminated to the shower tray. KERDI-BAND is only 4 one-thousands of an inch (4 mil) -thick, half the thickness of KERDI to limit buildup and ensure a smooth surface for tile installation.
Waterproofing corners
KERDI-KERECK-F are preformed, seamless corners made of KERDI for waterproofing inside and outside corners. Corners tend to be challenging areas to waterproof, so these corners greatly simplify installation.
Pipe and mixing valve seals
KERDI-SEAL-PS & -MV are used to seal pipe protrusions (PS) and protect solid backing panels at the mixing valve (-MV). They are made of KERDI waterproofing membrane and feature overmolded rubber gaskets to ensure a fully watertight seal.
KERDI-LINE Linear Drain
KERDI-LINE is an elegant, low profile linear floor drain specifically designed for bonded waterproofing assemblies. Install KERDI-LINE adjacent to the wall, or at intermediate locations of your shower floor—and then choose the drain grate that best matches your décor and desired finished look.
With lengths from 20" to 72" (50 cm to 180 cm) in 4" (10 cm) increments, KERDI-LINE can fit virtually any shower design.
Channel body
The KERDI-LINE channel body is made of formed stainless steel and features a bonding flange laminated with a collar made of KERDI waterproofing membrane. It ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls. It features a standard 2" (50 mm) no-hub outlet that is simple to connect to the waste line, and is offered in center and offset versions, providing flexibility when obstacles (e.g., floor joists) are encountered during installation.
Drain Grates
Drain grates are available in three elegant designs: brushed stainless steel frame with closed or perforated grates for a striking modern look, or frameless tileable covering support to seamlessly blend in with the surrounding tiles. KERDI-LINE-STYLE grates feature designs that fit virtually into an invisible frame. The grate assembly can be adjusted to a wide range of tile thicknesses, while the covering support is placed flush with the channel body and can therefore accommodate any thickness covering.
KERDI-SHOWER-LT/-LTS
The KERDI-SHOWER-LT/-LTS shower trays are made of lightweight, expanded polystyrene with integrated waterproofing via the KERDI membrane laminated on the surface, and a perfect slope so water is funneled directly to the drainage. The tray is simply bonded to any even and level substrate, and it’s ready to tile. As such, it eliminates the time and labor involved in building a sloped mortar bed. However, in cases where the configuration of the shower does not allow for the use of the tray, KERDI-LINE can also be used in conjunction with a mortar base.
There are two drain placement options available for the shower tray: center or wall-adjacent, as seen in this image. The KERDI-SHOWER-LT/-LTS shower trays are available in 39” x 39” (100 cm x 100 cm), 48” x 48” (122 cm x 122 cm), 55” x 55” (140 cm x 140 cm), 36” x 72” (91 cm x 183 cm), and 38” x 76” (97 cm x 193 cm).
Prefabricated Shower Curb
In this application we see the KERDI-SHOWER-SC shower curb, specifically designed to integrate with the shower system. The curb is available in two different materials: polystyrene (above) and KERDI-BOARD. Other options that can be added include prefabricated shower benches, niches, and ramps.
